Crown Moulding 6-7/8" - 2

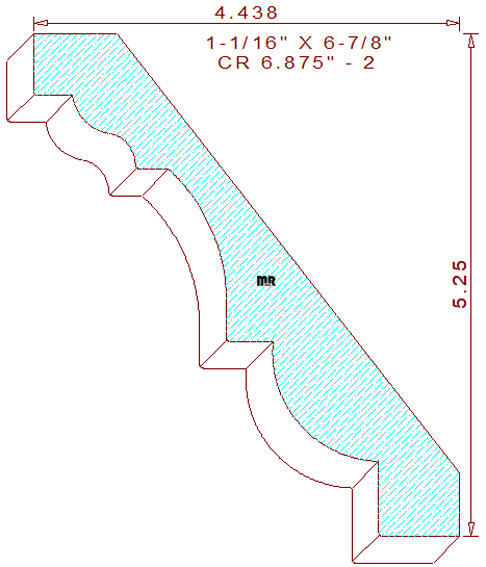

This extravagant crown moulding 6-7/8" - 2 measures 6.875" wide by 1.062" thickness, necessitating the use of five quarter lumber for milling on an industrial moulder. The classy elegant profile is composed of a 41/64" tall by 13/32" wide perpendicular lines on the top left, connected to a two tangent radius ogee with a 11/32" wide flat line joined to a 1-27/32" concave semicircle in the center, attached to a 3/64" wide flat line and a 1-9/64" radius ovolo joined to a 49/64" tall by 27/32" wide perpendicular lines at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 5-1/4" tall with a projection of 4-7/16" wide.

Looking for that special moulding to enhance the architectural style of your current project, send us a sketch, custom profile design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.875" / Depth of Cut = .750" (top knives.)

Thickness = 1.062" / Depth of Cut = .534" (right blades) & .525" (left cutters.)
