Crown Moulding 6-7/8" - 11

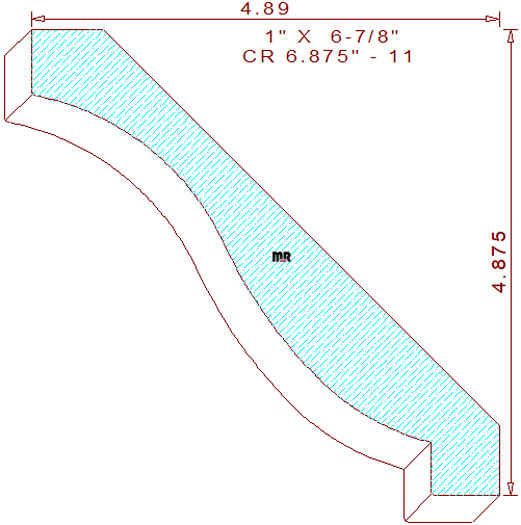

This lovely cyma recta crown moulding 6-7/8" - 11 measures 6.910" wide by 1.000" thickness, allowing the pattern to be machined sprung (laying horizontally flat) out of five quarter lumber. The graceful terminating profile is comprised of a 11/16" tall vertical line segment on the top left, connected to a 2-49/64" concave semicircular arc connected to a two tangent radius convex arc forming the cyma recta in the center, joined to a 9/16" tall vertical line with a 23/32" wide horizontal fillet on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-7/8" tall with a projection of 4-57/64" wide.

Increase search efficiency while looking over 15,000 profile designs in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.875" / Depth of Cut = .591" (top knives).

Thickness = 1.000" / Depth of Cut = .534" (right blades) & .591" (left cutters).
