Crown 6-1/2" - 21
Crown 6-1/2" - 21

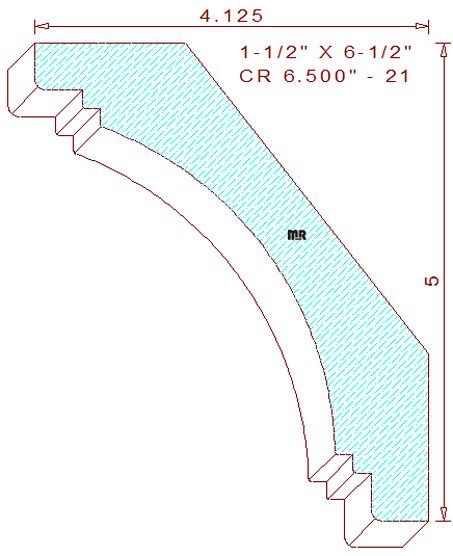

This bold 6-1/2" - 21 crown mould measures 6.500" wide by 1.500" thickness. The design consists of a large center cavetto flanked on both top and bottom by a small stepped fillet. At first glance, the profile appears to be symmetrical, but this is not the case. When installed, the height is 5" and the projection is 4-1/8". The spring angles are fixed at thirty-eight and fifty-two degrees with even hold-down points on each side purposely built into the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.247
Left Cutter Head
Thickness: 1.625
Depth of Cut: 1.074
Top Cutter Head
Width: 6.500
Depth of Cut: 0.829
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
