Crown 6-1/2" - 20
Crown 6-1/2" - 20

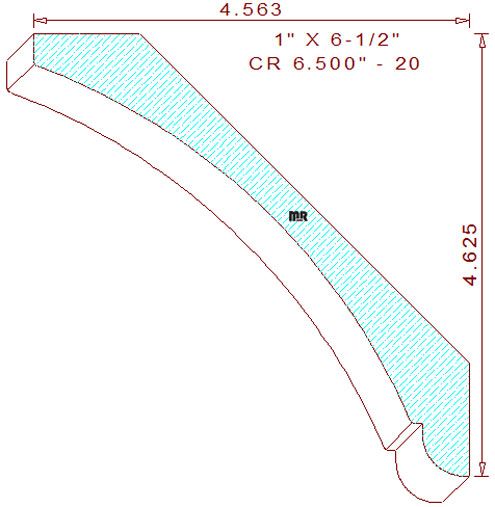

This incurved 6-1/2" - 20 crown mould measures 6.500" wide by 1.000" thickness. The design consists of a large 6-7/8" radius cove in the center with a 5/16" tall vertical fillet on top and a 5/16" radius quarter round bead with an attached horizontal fillet on the bottom. With the spring angles fixed at forty-five degrees, the installed height becomes 4-5/8" tall with a projection of 4-9/16" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.832
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.785
Top Cutter Head
Width: 6.500
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$133.00
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.50
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$152.00
(Template not needed)
