Crown Moulding 6-1/2" - 18

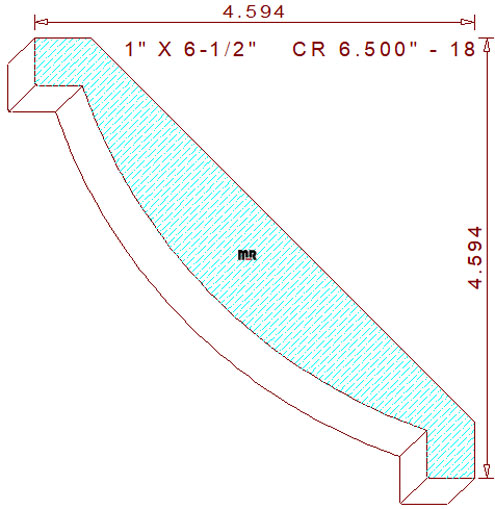

This ovolo style crown moulding 6-1/2" - 18 measures 6.500" wide by 1.000" thickness, necessitating the use of five quarter lumber for cutting on an industrial moulder. The beautiful symmetrical supporting profile is comprised of a 1/2" tall by 1/2" wide perpendicular lines on the top left, connected to a 5-13/16" radius convex arc in the center, joined to another 1/2" tall by 1/2" wide squared lines on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-19/32" tall with a projection of 4-19/32" wide.

We're delighted you found a functional profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.500" / Depth of Cut = .680" (top knives).

Thickness = 1.000" / Depth of Cut = .413" (right blades) & .413" (left cutters).
