Crown 6-3/8" - 8

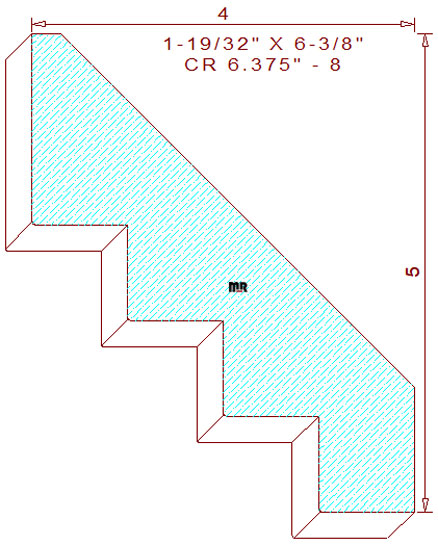

This four-step 6-3/8" - 8 crown mould measures 6.364" width by 1.593" thickness, requiring eight-quarter lumber for milling on a commercial-grade molder. The southwestern asymmetrical terminating profile contains a two-inch tall line segment on the top left. That vertical section connects to three sets of two perpendicular lines measuring 1" x 1", with a one-inch broad horizontal line at the bottom of the design. The set spring angles are at forty-five degrees; (included in the downloadable DXF file available below); these committed back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 5" tall with a projection of 4" across the top.
