Crown Moulding 6-3/8" - 3

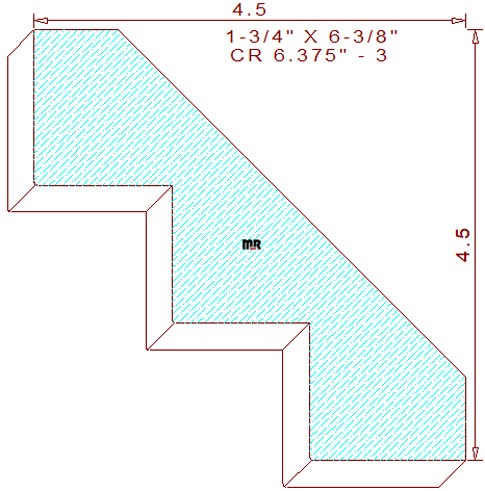

This three-step crown molding 6-3/8" - 3, measures 6.364" width by 1.750" thickness, necessitating the use of eight quarter lumber for milling on a commercial-grade molder. The symmetrical terminating profile contains a 1-5/8" tall line segment on the top left. That section connects to two sets of two perpendicular lines all measuring 1-7/16" in the center, with a 1-5/8" broad horizontal portion at the bottom of the design. The set spring angles are at forty-five degrees; these committed back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-1/2" tall with a projection of 4-1/2" across the top.

This template ready cad generated dxf file (purchase in the link below) contains two skillfully drafted template designs for producing profile cutters for this southwestern crown pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job a lot easier the production process.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.375" / Depth of Cut = 1.194" (top knives).

Thickness = 1.750" / Depth of Cut = .618" (right blades) & .618" (left cutters).
