Crown 6-3/8" - 2
Crown 6-3/8" - 2

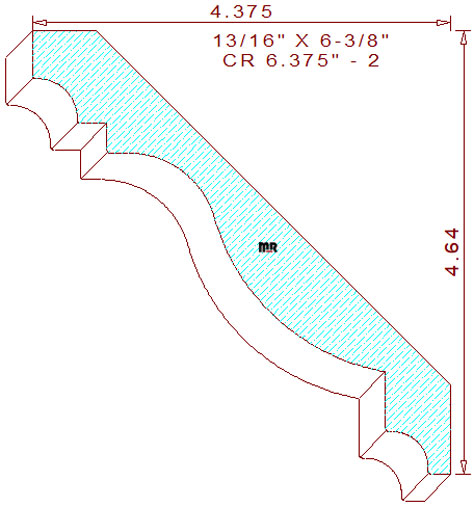

This elegant 6-3/8" - 2 crown mould measures 6.375" wide by .812" thickness, permitting the use of four-quarter lumber for milling on an industrial-grade molder. The well-balanced terminating profile contains a 1/2" vertical line segment joined to a 13/32" cove with a 5/16" by 5/16" perpendicular notch on the top left. This area merges with a graceful two tangent radius cyma recta in the center, connected to a 5/8" tall line with a 3/8" cove and a 15/64" broad horizontal line at the bottom right side of the design. The set spring angles are at
forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-41/64" tall with a projection of 4-3/8" across the top.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.473
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.621
Top Cutter Head
Width: 6.375
Depth of Cut: 0.426
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$123.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$133.00
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.50
(Template not needed)
