Crown 6-3/8" - 16
Crown 6-3/8" - 16

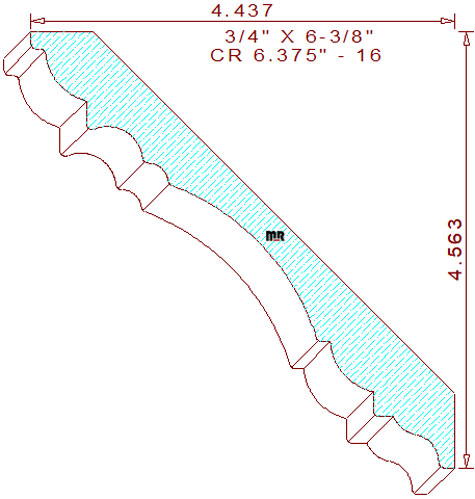

This elegant 6-3/8" - 16 crown mould measures 6.363" width by .750" thickness, requiring a 6-5/8" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The striking terminating profile comprises a 9/16" radius ovolo flanked by horizontal and vertical fillets on the upper left. The vertical line connects to smaller-sized coves merged with a 2-33/64" cavetto in the center. The bottom portion contains another ovolo attached to two perpendicular lines with a small ogee and an 11/64" flat line on the pattern's bottom right corner. The spring angles are at
forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angle positions lock in the installed height at 4-9/16" tall with a 4-7/16" projection across the top.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.464
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.553
Top Cutter Head
Width: 6.375
Depth of Cut: 0.419
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$123.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$133.00
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.50
(Template not needed)
