Crown Moulding 6-3/8" - 14

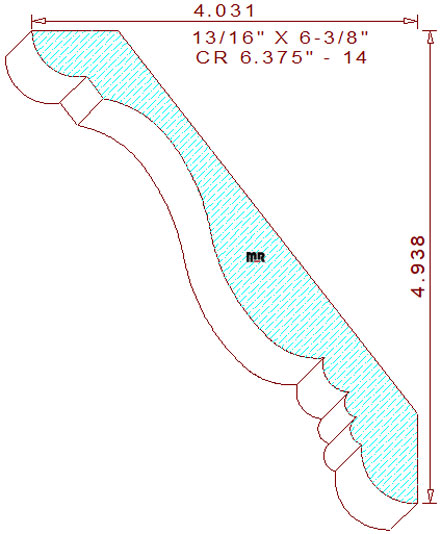

This lavish crown molding 6-3/8" - 14, measures 6.375" wide by .812" thickness, permitting the use of four quarter lumber for milling on an industrial-grade molder. The beautiful supporting profile contains a 31/64" radius quarter round convex arc tied into a beveled fillet on the top left. This area merges with a graceful two tangent radius cyma recta in the center, connected to a series of three convex semicircles and a 9/16" quarter round arc at the bottom right side of the design. The fixed spring angles are at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 4-15/16" tall with a projection of 4-1/32" across the top. We offer a couple of similar profiles in the same size with a forty-five-degree back-cuts for your review and consideration, crown 6.375" - 7, and crown 6.375" - 11.

Ever notice why some moldings look and feel better than other trim patterns in homes, offices, and older buildings. You may want to review our article on knife marks per inch. Read about how machine feed rates, rpm's of cutter heads can directly determine the quality of the products you produce. Following or exceeding industry standards will allow your company to lead the way in molding artisanship.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.375" / Depth of Cut = .536" (top knives).

Thickness = .812" / Depth of Cut = .552" (right blades) & .733" (left cutters).
