Crown Moulding 6-3/8" - 10

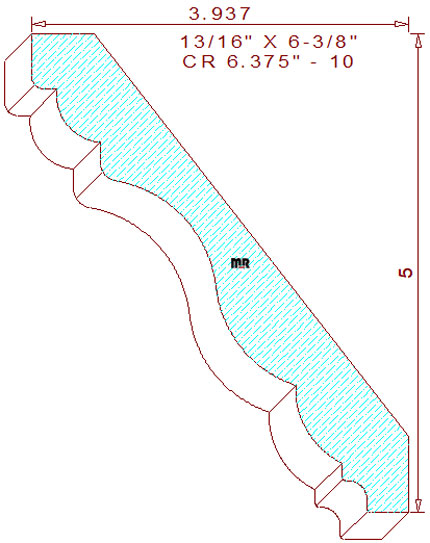

This luxurious crown molding 6-3/8" - 10, measures 6.364" wide by .812" thickness, permitting the use of four quarter lumber for milling on a commercial-grade molder. The beautiful terminating profile contains an ovolo flanked by vertical and horizontal line segments with rounded edges on the top left. This area transitions into a two tangent radius s-shaped curvature creating the cyma recta in the center merged with a shallow 55/64" convex arc with a small vertical line that ties into a 13/64" cove with a 7/16" broad fillet on the bottom right side of the design. The fixed spring angles are at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 5" tall with a projection of 3-15/16" across the top.

Do you need any supplies for your molder or tool room? Choose any of our quality high-speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your molder and knife grinding room.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.375" / Depth of Cut = .417" (top knives).

Thickness = .812" / Depth of Cut = .399" (right blades) & .624" (left cutters).
