Crown Moulding 6-3/8"

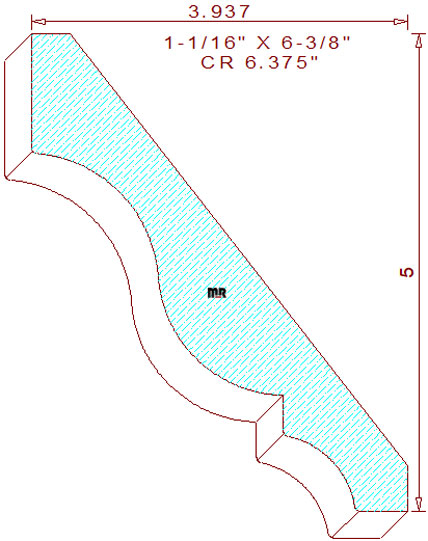

This traditional crown molding 6-3/8", measures 6.364" across by 1.063" thickness, necessitating the use of five quarter lumber for milling sprung (laying horizontally flat) on an industrial-grade molder. The colonial-themed terminating profile contains a 1-1/4" vertical line segment on the top left. That line joins a graceful two tangent radius s-shaped curvature known as a cyma recta in the center. Connected to a 27/64" tall line merged with a 29/32" cove and a 9/16" broad fillet on the bottom right side of the design. The spring angles get fixed at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 5" tall with a projection of 3-15/16" on top.

Increase search efficiency while looking over 15,000 profile designs in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project; we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.375" / Depth of Cut = .864" (top knives).

Thickness = 1.062" / Depth of Cut = .246" (right blades) & .373" (left cutters).
