Crown 6-1/4" - 3

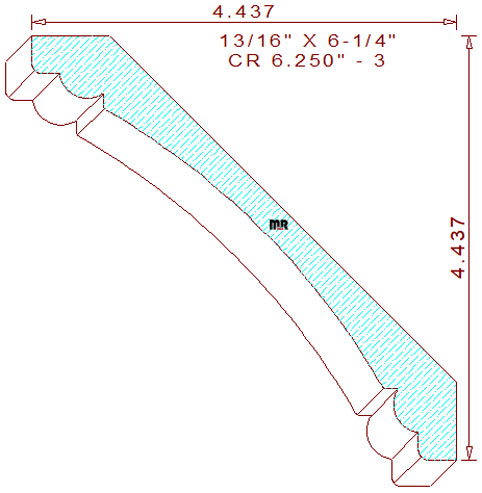

This concave crown molding 6-1/4" - 3 measures 6.275" width by .812" thickness, requiring the use of a 6-1/2" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial-grade molder. The symmetrical terminating profile contains a 7-15/16" radius cove in the center. The concave semicircle attaches to a 19/64" half circle flanked by horizontal and vertical fillets with a 13/32" flat line on the top left and bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-7/16" tall with a projection of 4-7/16" across the top.

Utilize our enchanting patterns to create a stylish molding catalog for your millwork company, or, simply connect our catalog to your website, offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on molding knife design. Let us help you in the remodel of that beautiful house in the transformation into an elegant home.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.250" / Depth of Cut = .500" (top knives).

Thickness = .812" / Depth of Cut = .576" (right blades) & .576" (left cutters).
