Crown Moulding 6-3/16"

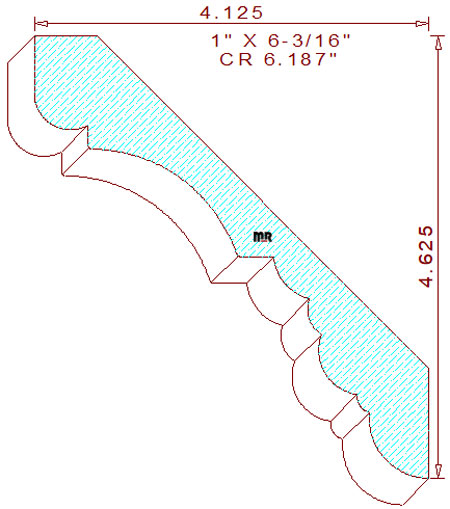

This intricate crown molding 6-3/16" measures 6.187" wide by 1.000" thickness, requiring the use of a 6-7/16" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The asymmetrical terminating profile contains a 39/64" vertical line tangent to a 3/8" half-round bead on the top left. The semicircle connects to a 1/4" tall line segment joined to a 1-5/8" cove with a 3/8" flat line in the center. The remaining portion consists of a series of five convex arcs of different radiuses on the design's bottom right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed. These specific angles also lock in the positioned height at 4-5/8" tall with a 4-1/8" projection across the top.

All our precision cad (computer-aided design) files contain important moulder setup and grinding information all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's exquisite architectural details, one astonishingly gorgeous profile at a time.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.188" / Depth of Cut = .673" (top knives).

Thickness = 1.000" / Depth of cut = .463" (right blades) & .817" (left cutters).
