Crown Moulding 6-1/16" - 5

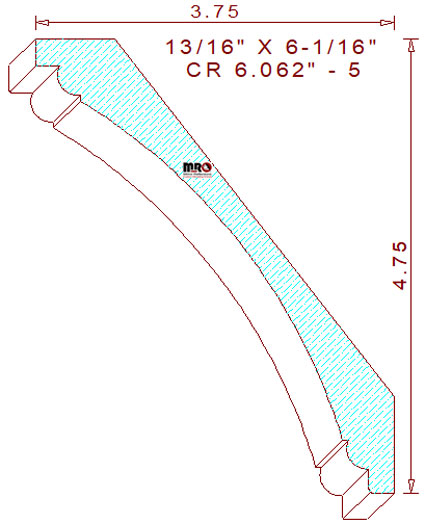

This delightful crown moulding 6-1/16" - 5 measures 6.062" wide by .812" thickness, necessitating the use of a 6-5/16" wide blank of four-quarter lumber for machining sprung (laying horizontally flat) on an industrial moulder. The innovative profile composes a 6-9/32" radius cove in the center, attached to a 7/32" radius bead and a 1/4" wide by 9/32" tall squared lines on the top left. The lower portion consists of a 7/32" radius arc with a 1/4" tall by 17/64" wide squared lines at the bottom right side. The spring angles are fixed at thirty-eight and fifty-two degrees, these devoted back bevels set the installed height at 4-3/4" tall with a projection of 3-3/4" wide.

Two high points in the design were deliberately positioned on the same plane. Our disciplined design features will create optimal hold-down conditions while milling the pattern on an industrial moulder. Utilize any of our patterns to create a stylish moulding catalog for your millwork company offer more eye-catching profiles to your clients while reducing production cost spent on knife design. Let us help you in the transformation of that beautiful house being constructed into an elegant home.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 6.062" / Depth of Cut = .531" (top knives).

Thickness = .813" / Depth of Cut = .508" (right blades) & .793" (left cutters).
