Crown 6" - 9

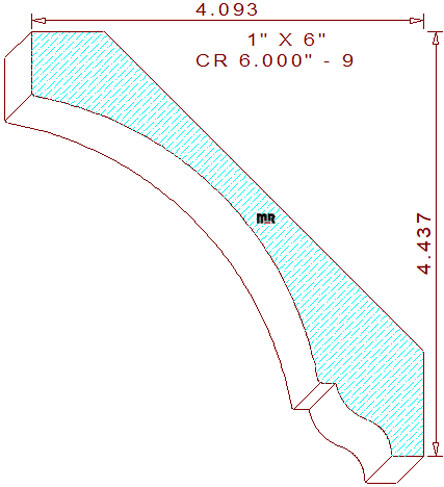

This cove style crown moulding 6" - 9 measures 6.031" wide by 1.000" thickness, allowing the detail to be machined sprung (laying horizontally flat) out of five quarter lumber. The concave profile is composed of a 43/64" tall vertical line at the top, connected to a 3-11/16" cove with a 3/16" wide horizontal fillet in the center, attached to a 1/2" radius arc tangent off of a 3/8" concave semicircle creating the ogee with a 11/32" wide horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 4-7/16" tall with a projection of 4-3/32" wide.

Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.000" / Depth of Cut = .660" (top knives.)

Thickness = 1.000" / Depth of Cut = .536" (right blades) & .780" (left cutters.)
