Moulding Knives by Mirror Reflections

Moulding Knives
by Mirror Reflections
(801)451-5987

Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Crown 6" - 7

Crown 6" - 7

Crown 6" - 7

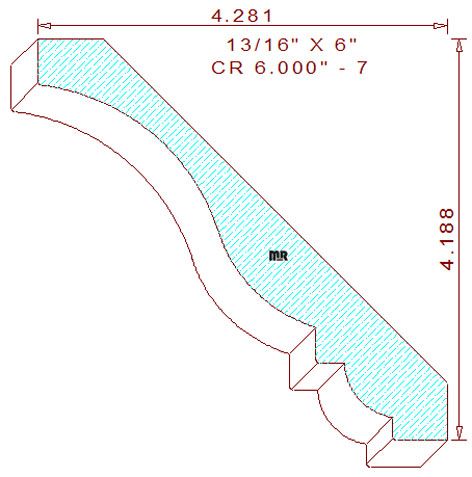

This Elegant Crown Mould 6" - 7 measures 6.000" wide by .812" thickness, the profile is composed of a 1/2" wide fillet on top attached to a cyma recta in the center connected to an ovolo at the bottom of the design which is flanked by a fillets. When installed the height becomes 4-3/16" tall with a projection of 4-9/32" wide with the spring angles set at forty-five degrees. The points of the crown are intentionally positioned on the same level plane creating superior hold down conditions during the milling process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
