Crown 6" - 43

Crown 6" - 43

Crown 6" - 43

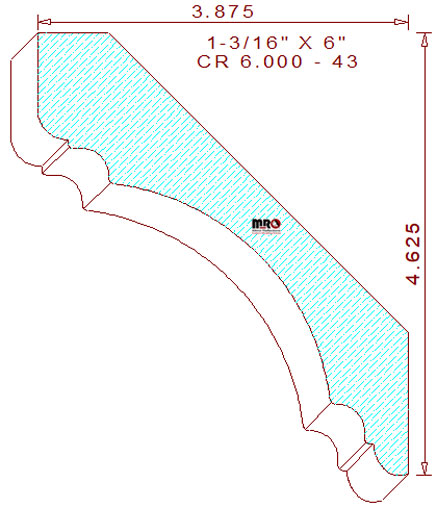

This 6" - 43 concave crown mould measures 6.000" wide by 1.187" thickness, requiring a 6-1/4' wide blank of six-quarter lumber for machining on an industrial moulder. The striking terminating profile comprises a 1-1/8" tall line with a 5/16" radius edge on the top left. It connects a tiny vertical fillet with a 9/32" cove, joined to a 39/64" concave semicircle in the center. The lower portion contains another 9/32" cavetto and a small horizontal fillet merged with a two tangent radius elliptical-shaped convex arc on the design's bottom right corner. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angle positions lock in the installed height at 4-5/8" tall with a 3-7/8" projection across the top.

Custom-made elegance is a phrase used to define thousands of our moulding profile's beauty, style, and artisanship. Suppose you own a recently built house or older dated residence. In that case, we have the professional ability, knowledge, and experience to create visually stunning details to complement the architectural design of your elegant home and office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.526
Left Cutter Head
Thickness: 1.625
Depth of Cut: 1.043
Top Cutter Head
Width: 6.000
Depth of Cut: 0.786
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$128.25
(Template not needed)
$407.50
Not Needed
Total:
$697.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$137.75
(Template not needed)
$434.50
Not Needed
Total:
$743.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$147.25
(Template not needed)
$461.50
Not Needed
Total:
$789.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
