Crown 6" - 37

Crown 6" - 37

Crown 6" - 37

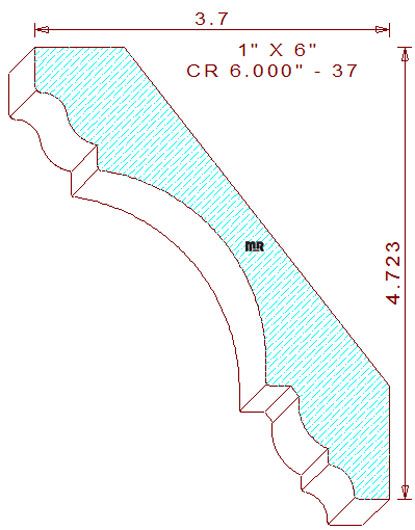

This beautifully designed 6" - 37 crown mould measures 6.000" wide by 1.000" thickness; it will require five-quarter lumber to mill this pattern properly; the profile is composed of several geometrical shapes, including fillets, cavetto, ovolo, and a quarter round bead. When installed, the height becomes roughly 4-23/32" tall with a projection slightly over 3-11/16" wide with the spring angles fixed at thirty-eight and fifty-two degrees. Five high points in the design are intentionally positioned on the same level plane, creating optimal hold-down capabilities while milling this pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
