Crown 6" - 28

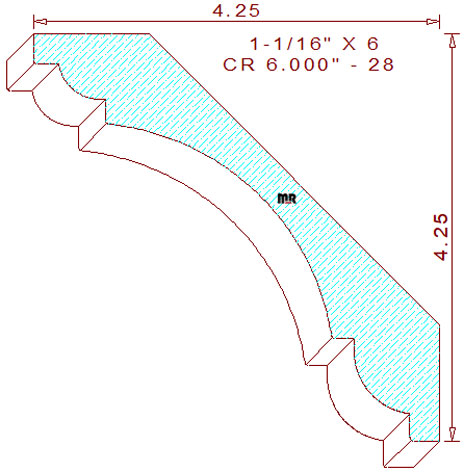

This distinguished crown molding 6" - 28 measures 6.010" width by 1.062" thickness, necessitating the use of five quarter lumber for machining sprung (laying horizontally flat) on a commercial-grade molder. The stylish supporting profile contains a 5/16" tall line segment, joined to a 7/16" quarter round arc with a 17/64" vertical line below on the top left. This area connects to a 2-5/8" radius concave semicircle in the center, merged to a 15/64" horizontal line with a 43/64" convex arc and a 5/16" wide flat line on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-1/4" tall with a projection of 4-1/4" across the top.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. Whether you own a recently built house or older style residence, we have the ability, knowledge, and experience to create visually stunning molding profiles that will complement the architectural decor of your elegant home or office.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.000" / Depth of Cut = .687" (top knives).

Thickness = 1.062" / Depth of Cut = .857" (right blades) & .857" (left cutters).
