Crown 6" - 27

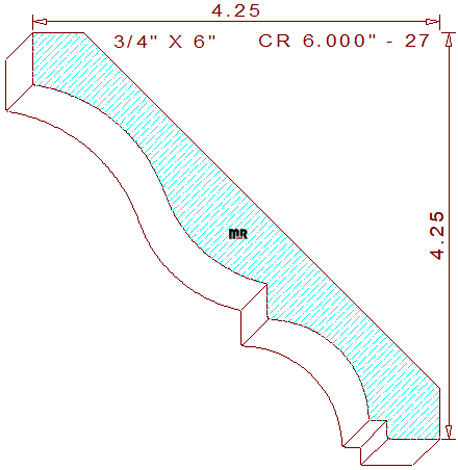

This unique crown molding 6" - 27 measures 6.011" width by .750" thickness, permitting the use of a 6-1/4" wide blank of four quarter lumber for milling sprung (laying horizontally flat) on an industrial-grade molder. The beautiful terminating profile contains a 17/32" tall vertical line on the top left. The fillet connects to a 1-3/4" concave semicircle, tangent to a 1-7/16" convex arc forming the cyma recta in the center. The remaining portion of the pattern consists of a 3/8" tall vertical line segment joined to a 1-1/16" cove with a 3/16" by 3/16" perpendicular notch and a 9/16" flat line on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-1/4" tall with a projection of 4-1/4" across the top.

All cad (computer-aided design) files contain important moulder setup and grinding information all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's exquisite architectural details, one astonishingly gorgeous profile at a time.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.000" / Depth of Cut = .494" (top knives).

Thickness = .750" / Depth of Cut = .378" (right blades) & .378" (left cutters).
