Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Crown 6"

Crown 6"

Crown 6"

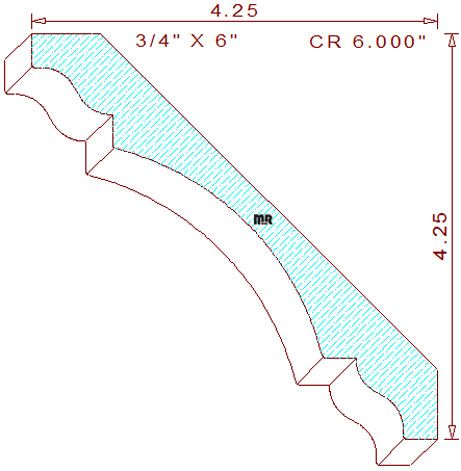

This 6" symmetrical crown mold measures 6.000" wide by .750" thickness. The profile is comprised of a 3" radius cavetto positioned in the center and flanked by fillets with attached cyma recta and reversa on the top and bottom of the pattern. The spring angles are fixed at forty-five degrees, which sets the installed height and projection at 4-1/4" tall and wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
