Crown 5-15/16" - 6
Crown 5-15/16" - 6

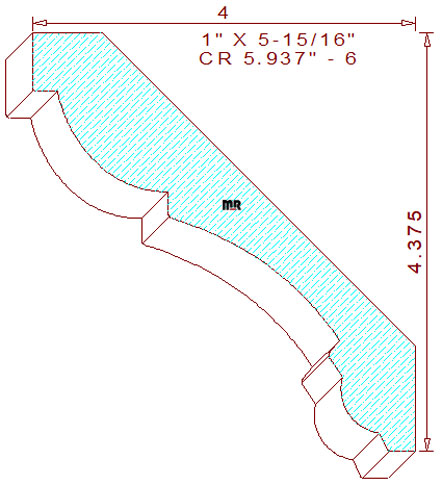

This distinguished 5-15/16" - 6 crown mould measures 5.922" width by 1.000" thickness, necessitating the use of five-quarter lumber for machining sprung (laying horizontally flat) on a commercial-grade moulder. The gorgeous supporting profile contains a 5/8" tall line by 1/4" broad perpendicular lines merged with a two tangent radius convex arc with a 9/32" vertical fillet forming the ovolo on the top left. This area connects to a 3-3/64" radius concave semicircle in the center with protruded sharp lines joined to a 45/64" half-circle with small obtuse lines on the bottom right side of the design. The set spring angles are at
forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-3/8" tall with a projection of 4" across the top.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.513
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.778
Top Cutter Head
Width: 5.937
Depth of Cut: 0.544
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$133.00
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.50
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$152.00
(Template not needed)
