Crown 5-15/16" - 12

Crown 5-15/16" - 12

Crown 5-15/16" - 12

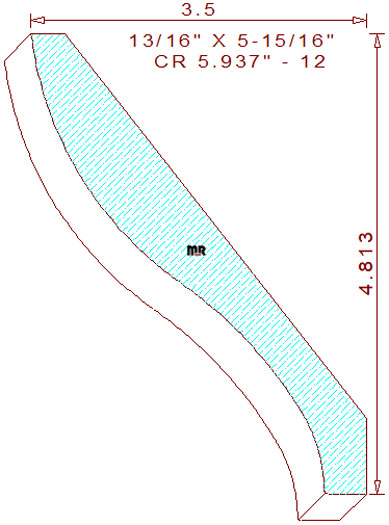

This charming 5-15/16" - 12 crown mould measures 5.947" wide by .813" thickness, permitting the use of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial-grade molder. The engaging supporting profile contains a graceful three-tangent radius cyma reversa with a 7/16" broad line segment on the bottom right side of the design. The fixed spring angles get set at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 4-13/16" tall with a projection of 3-1/2" across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.277
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.484
Top Cutter Head
Width: 5.937
Depth of Cut: 0.624
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$377.35
Not Needed
Total:
$700.85
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$404.10
Not Needed
Total:
$746.60
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$430.85
Not Needed
Total:
$792.35
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
