Crown 5-15/16"

Crown 5-15/16"

Crown 5-15/16"

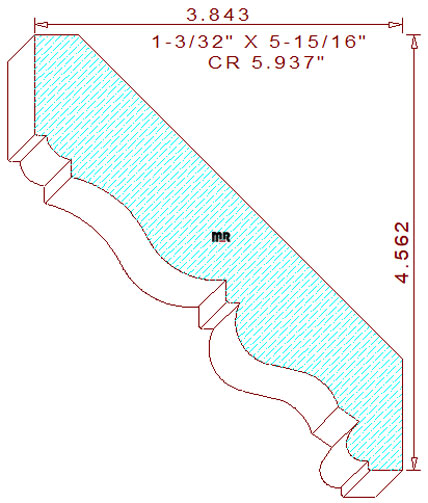

This fancy 5-15/16" crown mould measures 5.943" wide by 1.094" thickness, allowing the pattern to be milled from five-quarter lumber. The fashionable terminating profile is composed of a 1-1/16" tall vertical line on the top left, attached to an ovolo shaped bead and a two tangent radius cyma recta with a small perpendicular line in the center, merged with a decorative cyma reversa, and a flat angled line segment that transitions into a teardrop-shaped bead. There are 23/64" wide by 7/64" tall squared lines at the bottom of the fancy pattern. The spring angles are at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-9/16" tall with a projection of 3-27/32" wide.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,000 patterns in our search by size molding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.321
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.830
Top Cutter Head
Width: 5.937
Depth of Cut: 0.866
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$128.25
(Template not needed)
$404.10
Not Needed
Total:
$694.10
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$137.75
(Template not needed)
$430.85
Not Needed
Total:
$739.85
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$147.25
(Template not needed)
$457.59
Not Needed
Total:
$785.59
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
