Crown 5-7/8" - 15

Crown 5-7/8" - 15

Crown 5-7/8" - 15

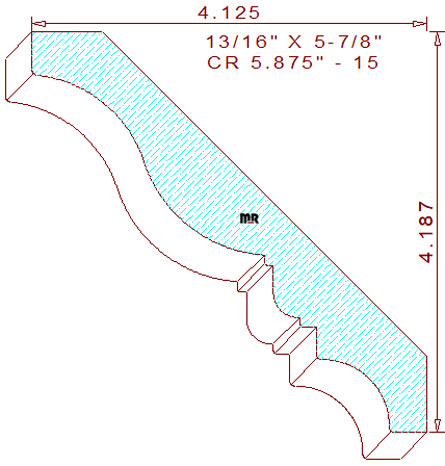

This captivating 5-7/8" - 15 crown mould measures 5.875" width by .813" thickness, permitting the use of four-quarter lumber for milling on a commercial-grade molder. The asymmetrical terminating profile contains a 5/8" tall vertical line segment joined to a graceful two tangent radius cyma recta on the top left. The s-shaped curvature merges with two sets of perpendicular lines divided by a teardrop-shaped bead in the center and connected to a 45/64" cove flanked by a vertical & horizontal line segment on the lower right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-3/16" tall with a projection of 4-1/8" across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.519
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.561
Top Cutter Head
Width: 5.875
Depth of Cut: 0.419
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$374.25
Not Needed
Total:
$654.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$400.75
Not Needed
Total:
$700.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$427.25
Not Needed
Total:
$745.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
