Crown 5-13/16" - 5
Crown 5-13/16" - 5

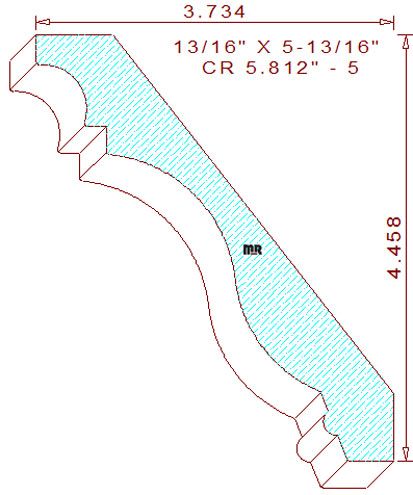

This stunning 5-13/16" - 5 crown mould measures 5.812" wide by .812" thickness. The profile comprises a cavetto (cove) connected to a notched fillet attached to a cyma recta in the middle, which transitions into a half-round bead flanked by angled fillets. When installed, the height becomes 4-29/64" tall, and the projection is 3-47/64" wide, with spring angles set at thirty-eight and fifty-two degrees. The points in the design are purposely positioned on the same level plane for superior hold-down capabilities during manufacturing.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.634
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.436
Top Cutter Head
Width: 5.812
Depth of Cut: 0.469
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
