Crown 5-3/4" - 7
Crown 5-3/4" - 7

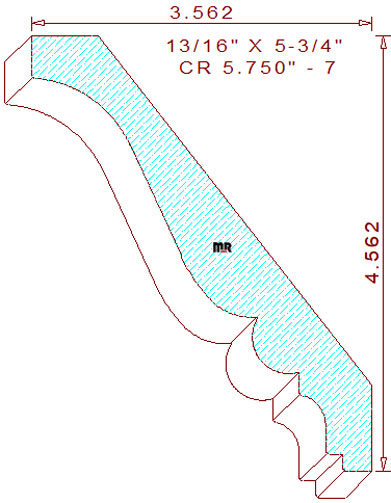

This beautiful 5-3/4" - 7 crown mould measures 5.788" width by .813" thickness, enabling the use of a six-inch-wide blank of four-quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The elegant terminating profile contains a 29/64" vertical fillet on the top left. The straight line connects to a graceful three-tangent radius cyma recta with a 47/64" half-circle in the center. The remaining portion of the pattern consists of a 1/4" vertical line merged with a 21/32" tall congee derived from a 5/16" cove. An 11/64" perpendicular notch merges with a 5/16" broad line segment on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-9/16" tall with a projection of 3-9/16" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.553
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.555
Top Cutter Head
Width: 5.750
Depth of Cut: 0.402
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$381.00
Not Needed
Total:
$714.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$407.00
Not Needed
Total:
$759.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$446.00
Not Needed
Total:
$826.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
