Crown 5-3/4" - 17

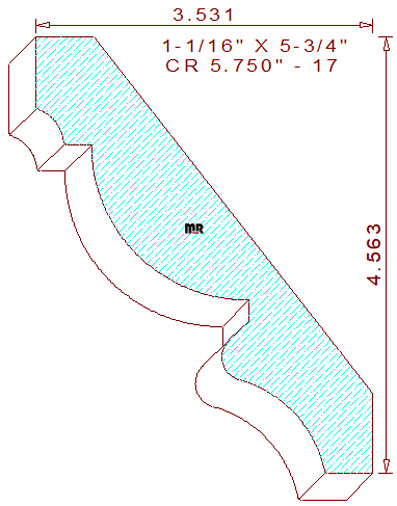

This exquisite 5-3/4" - 17 crown mould measures 5.750" wide by 1.062" thickness, requiring six-quarter lumber to mill this pattern on an industrial moulder. The attractive profile comprises a 3/4" tall vertical segment on top, connected to a 13/32" radius cove with a 9/32" broad horizontal line that transitions into a 1-5/8" radius arc, joined to a 9/32" sunk fillet with a cyma reversa and 1/2" horizontal segment at the bottom of the design. The fixed spring angles at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 4-9/16" tall with a projection of 3-17/32" wide.
