Crown 5-3/4" - 14

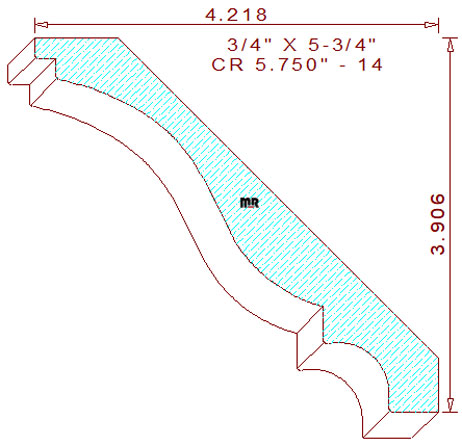

This custom 5-3/4" - 14 crown mould measures 5.750" wide by .750" thickness, allowing the detail to be machined from four-quarter lumber. The beautifully elegant profile is composed of a 7/32" tall vertical line joined to a 7/32" tall and wide notch on top, connected to a graceful three tangent radius cyma recta in the center, merged wit ha 25/64" tall vertical line segment and a 17/32" cove with a 33/64" wide horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-29/32" tall with a projection of 4-7/32" wide. We offer another similar profile in the same width for your review and consideration, crown mould 5.750".
