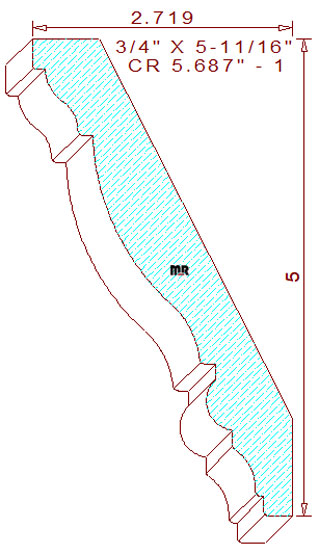

Crown 5-11/16" - 1

This opulent 5-11/16" - 1 crown mould measures 5.688" width by .750" thickness, necessitating the use of a 5-15/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The luxurious profile contains a 19/64" tall vertical line joined to a shallow ogee flanked by small horizontal line segments on the top left. The lower short line connects to a two tangent radius cyma reversa merged with a 5/32" squared notch in the center. The remaining portion of the pattern consists of a 17/32" tall convex bead attached to a 31/64" cove bordered by a horizontal and vertical fillet with a set of perpendicular lines on the design's bottom right side. The fixed spring angles are set at twenty-seven and sixty-three degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5" tall with a projection of 2-23/32" across the top.
