Crown 5-21/32" - 8

Crown 5-21/32" - 8

Crown 5-21/32" - 8

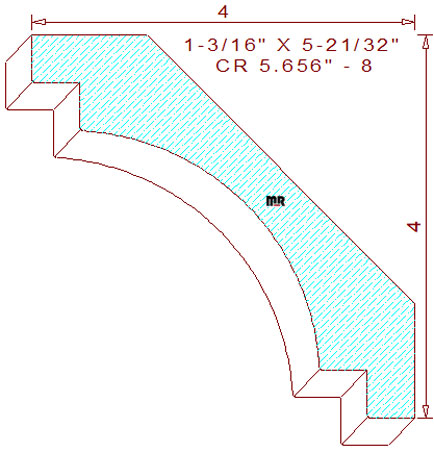

This decorative 5-21/32" - 8 crown mould measures 5.656" wide by 1.187" thickness, necessitating the use of six-quarter lumber to be machined sprung (laying horizontally flat) on an industrial moulder. The symmetrical terminating profile is composed of a 1/2" tall vertical line merged a 1/2" wide by 1/2" deep notch on the top left, attached to a 2-5/8" radius cove in the center, joined to a half inch wide by a half inch deep perpendicular notch with a 1/2" wide line segment on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling; they also set the installed height at 4" tall with a projection of 4" wide. We offer an alternative profile with similar design characteristics for your review and consideration, crown 5.656" - 18. Utilize any of our enchanting patterns to create a stylish profile catalog for your millwork company, or connect our extensive catalog to your website. This will enable you to offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on knife design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.850
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.850
Top Cutter Head
Width: 5.656
Depth of Cut: 0.670
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$388.92
Not Needed
Total:
$688.42
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$414.55
Not Needed
Total:
$733.05
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$440.17
Not Needed
Total:
$777.67
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
