Crown 5-21/32" - 4

Crown 5-21/32" - 4

Crown 5-21/32" - 4

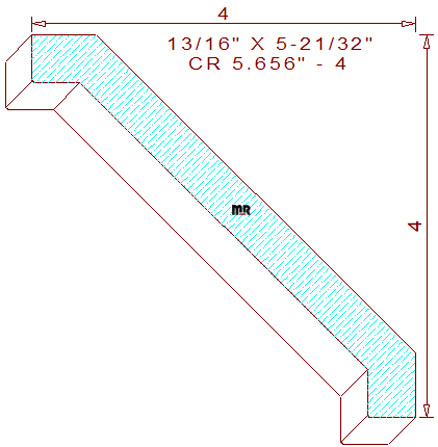

This beveled 5-21/32" - 4 crown mould measures 5.656" wide by .812" thickness, allowing the pattern to be machined from four-quarter lumber. The symmetrical shaker style profile is composed of a 4-1/4" wide forty-five-degree beveled line in the center, flanked by a 1/2" wide by 1/2" tall squared lines at both the top and bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at identical dimensions of four inches tall and wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.475
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.475
Top Cutter Head
Width: 5.656
Depth of Cut: 0.430
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$376.11
Not Needed
Total:
$666.11
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$401.74
Not Needed
Total:
$710.74
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$427.36
Not Needed
Total:
$755.36
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
