Crown 5-21/32" - 3

Crown 5-21/32" - 3

Crown 5-21/32" - 3

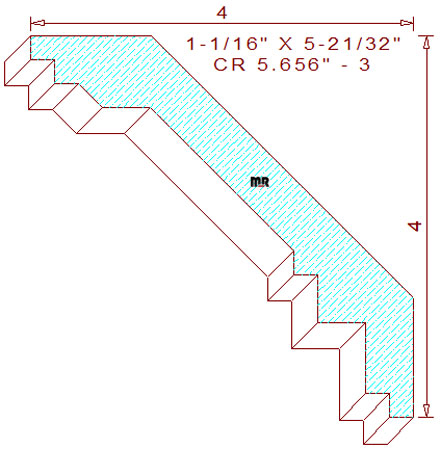

This southwest 5-21/32" - 3 crown mould measures 5.656" wide by 1.062" thickness, enabling the pattern to be machined from five-quarter lumber. The intricate profile is composed of a 1/4" vertical line that connects to a 1/4" squared notch, joined to a 23/64" beveled line and a 1/2" wide horizontal ceiling in the upper portion, the center consists of a 2-1/8" long forty-five degree angled line that merges with a series of three different sized notched fillets with a 1/4" horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height as well as the projection at an identical dimension of four inches tall and wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.902
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.902
Top Cutter Head
Width: 5.656
Depth of Cut: 0.514
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$363.30
Not Needed
Total:
$662.80
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$388.92
Not Needed
Total:
$707.42
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$414.55
Not Needed
Total:
$752.05
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
