Crown 5-5/8" - 3
Crown 5-5/8" - 3

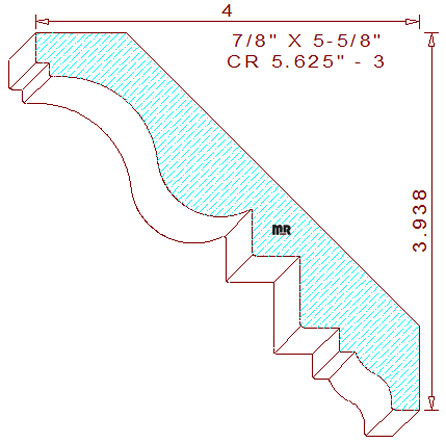

This custom 5-5/8" - 3 crown mould measures 5.625" wide by .875" thick. The pattern could be milled at 27/32" thickness or even 13/16" to machine this detail out of four-quarter lumber. The decorative profile comprises a two-different-sized cyma reversa flanked by a series of notched and stepped fillets. The spring angles are fixed at forty-five degrees, setting the installed height at 3-15/16" tall with a projection of 4" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.668
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.622
Top Cutter Head
Width: 5.375
Depth of Cut: 0.511
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
