Crown 5-5/8" - 11
Crown 5-5/8" - 11

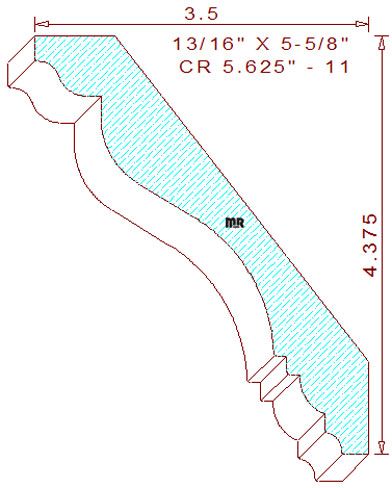

This stylish 5-5/8" - 11 crown mould measures 5.625" wide by .813" thickness. The profile design comprises a large cyma reversa connected to cyma recta on top; the bottom of the pattern consists of a notched fillet connected to an ovolo with a small cavetto and horizontal fillet. The spring angles are fixed at thirty-eight and fifty-two degrees, setting the installed height at 4-3/8" tall with a projection of 3-1/2" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.665
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.601
Top Cutter Head
Width: 5.625
Depth of Cut: 0.408
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
