Crown 5-5/8"
Crown 5-5/8"

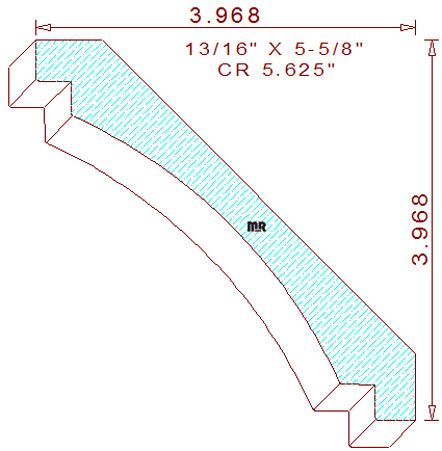

This attractive 5-5/8" crown mould measures 5.625" wide by .812" thick, enabling you to mill this pattern from four-quarter lumber. The symmetrical profile design consists of a cove or cavetto in the center flanked by two notched fillets, one on the top of the pattern and the other at the bottom. When correctly installed, the height and projection have identical dimensions at 3-31/32" tall and wide, with the spring angles fixed at forty-five degrees. The design points are purposely set on the same level plane to assist in holding down the product while milling the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.528
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.528
Top Cutter Head
Width: 5.625
Depth of Cut: 0.362
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
