Crown 5-9/16" - 1
Crown 5-9/16" - 1

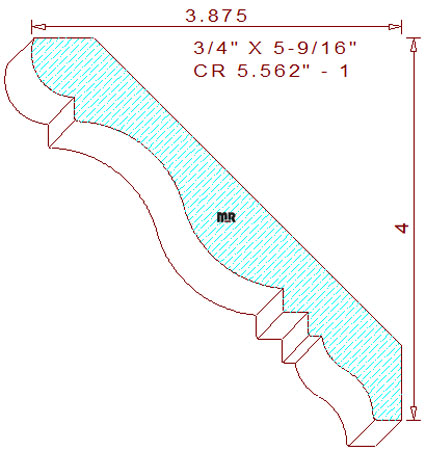

This inventive 5-9/16" - 1 crown mould measure 5.562" wide by .750" thickness. The attractive profile is comprised of a 15/32" radius quarter round arc attached to a 1/4" tall vertical line on top. It's connected to two tangent radius cyma recta in the middle, joined to two 1/4" stepped fillets with a small ogee/cyma reversa and a 5/16" wide horizontal line at the bottom of the pattern, The spring angles are fixed at
forty-five-degrees and these specific back bevels set the installed height at 4" tall with a projection of 3-7/8" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.445
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.445
Top Cutter Head
Width: 5.562
Depth of Cut: 0.395
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
