Crown 5-1/2" - 7

Crown 5-1/2" - 7

Crown 5-1/2" - 7

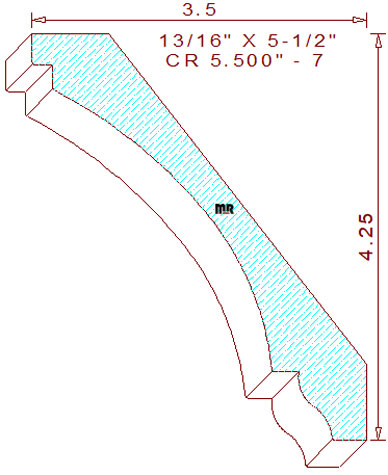

This cove-style 5-1/2" - 7 crown mould measures 5.503" wide by .812" thickness, allowing the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The beautiful supporting profile is comprised of a 21/64" tall vertical line on the top left, attached to a 13/64" wide by 1/4" tall perpendicular notch and a two tangent radius elliptical shaped concave semicircle in the center, joined to a 9/32" wide flat line and a two tangent radius ogee with a 23/64" wide horizontal line segment on the bottom right side of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner section of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 4-1/4" tall with a projection of 3-1/2" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.629
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.488
Top Cutter Head
Width: 5.500
Depth of Cut: 0.466
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$161.75
$355.50
Not Needed
Total:
$688.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$171.25
$380.50
Not Needed
Total:
$732.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$180.75
$405.50
Not Needed
Total:
$776.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
