Crown 5-1/2" - 43

Crown 5-1/2" - 43

Crown 5-1/2" - 43

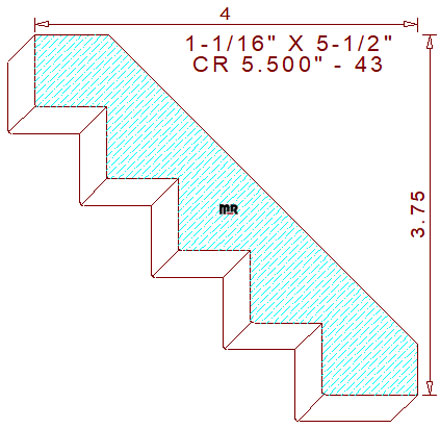

This asymmetrical 5-1/2" - 43 crown mould measures 5.480" width by 1.062" thickness, requiring the use of a 5-3/4" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The southwest-themed terminating profile contains four sets of 3/4" wide by 3/4" tall perpendicular lines and a 3/4" high by one-inch broad flat line on the lower right corner of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-3/4" tall with a projection of 4" across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.450
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.450
Top Cutter Head
Width: 5.500
Depth of Cut: 0.784
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$393.00
Not Needed
Total:
$683.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$418.00
Not Needed
Total:
$727.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$443.00
Not Needed
Total:
$771.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
