Crown 5-1/2" - 42

Crown 5-1/2" - 42

Crown 5-1/2" - 42

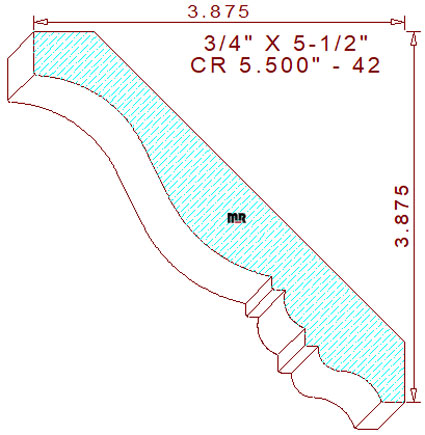

This elegant 5-1/2" - 42 crown mould measures 5.480" width by .750" thickness, requiring the use of a 5-3/4" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial-grade molder. The sophisticated terminating profile contains a 29/64" vertical fillet, joined to a fashionable two-tangent radius cyma recta in the top left center. The s-shaped curvature attaches to a 21/64" radius ovolo flanked by a set of perpendicular lines transitioning into a graceful ogee with a 1/4" broad flat line on the lower right corner of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-7/8" tall with a projection of 3-7/8" across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.442
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.442
Top Cutter Head
Width: 5.500
Depth of Cut: 0.401
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$355.50
Not Needed
Total:
$636.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$380.50
Not Needed
Total:
$680.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$405.50
Not Needed
Total:
$724.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
