Crown 5-1/2" - 39

Crown 5-1/2" - 39

Crown 5-1/2" - 39

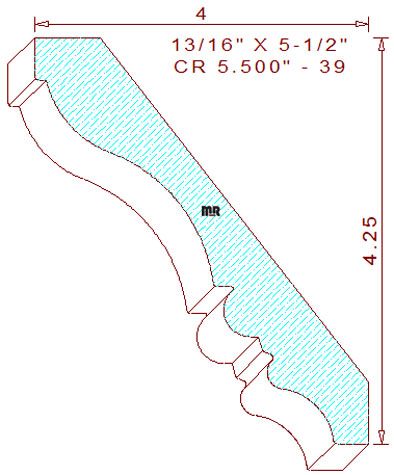

This creative 5-1/2" - 39 crown mould measures 5-1/2" wide by 13/16" thick. The profile comprises a large cyma reversa with an attached vertical fillet in the upper portion; the lower section consists of a combination of fillets, a round bead, and another smaller cyma reversa. When installed, the height becomes 4-1/4" tall with a projection of 4" wide. The spring angles are fixed at thirty-eight and fifty-two degrees.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.536
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.399
Top Cutter Head
Width: 5.500
Depth of Cut: 0.539
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$355.50
Not Needed
Total:
$679.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$380.50
Not Needed
Total:
$723.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$405.50
Not Needed
Total:
$767.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
