Crown 5-1/2" - 24

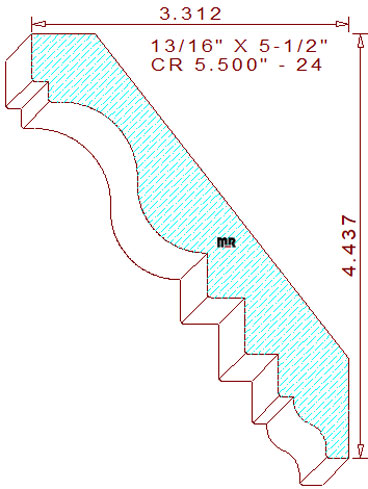

This multi-step 5-1/2" - 24 crown mould measures 5.535" width by .813" thickness, necessitating the use of a 5-3/4" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The southwest-themed terminating profile contains a 1/2" tall vertical fillet joined to a 7/32" tall by 5/32" wide notch in the upper left. The small rabbet connects to a beautiful s-shaped curvature known as cyma recta; it merges with a series of three different-sized stepped line segments with a small ogee and a 15/64" broad flat line on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-7/16" tall with a projection of 3-5/16" across the top.
