Crown 5-1/2" - 23

Crown 5-1/2" - 23

Crown 5-1/2" - 23

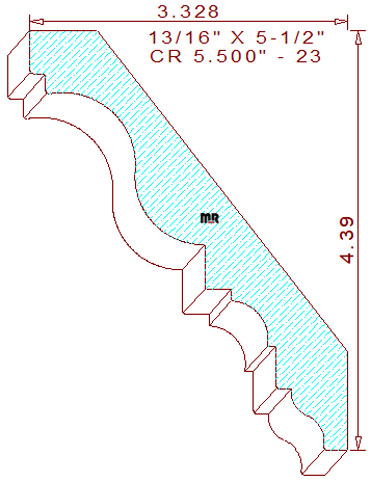

This ornate 5-1/2" - 23 crown mould measures 5.500" wide by .813" thickness, allowing the detail to be machined sprung (laying horizontally flat) from four-quarter lumber. The striking profile comprises a combination of horizontal and vertical line segments, notches, cyma recta, a cove, and a small ogee at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 4-25/64" tall with a projection of 3-21/64" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.551
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.632
Top Cutter Head
Width: 5.500
Depth of Cut: 0.424
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$171.25
$355.50
Not Needed
Total:
$688.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$180.75
$380.50
Not Needed
Total:
$732.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$190.25
$405.50
Not Needed
Total:
$776.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
