Crown 5-1/2" - 19

Crown 5-1/2" - 19

Crown 5-1/2" - 19

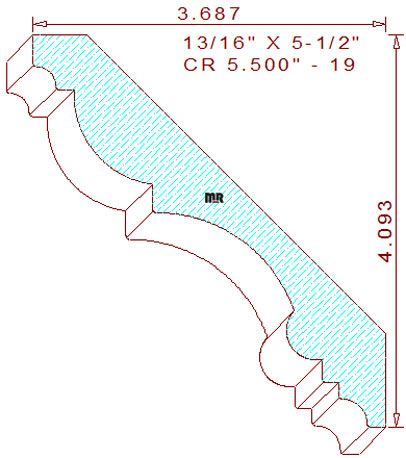

This ornate 5-1/2" - 19 crown mould measures 5.500" wide by .812" thickness. The decorative detail comprises a cavetto in the center flanked by an ovolo and a cove in the upper portion; the lower section consists of a half-rounded bead with a connected notched fillet with an attached cavetto on the bottom. With the spring angles fixed at forty-five degrees, the installed height becomes 4-3/32" tall with a 3-11/16" wide projection. Using these spring angles also enabled five points of the design to be positioned on the same level plane; this will help in holding down the workpiece during the milling process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.402
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.690
Top Cutter Head
Width: 5.500
Depth of Cut: 0.483
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$128.25
(Template not needed)
$355.50
Not Needed
Total:
$645.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$137.75
(Template not needed)
$380.50
Not Needed
Total:
$689.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$147.25
(Template not needed)
$405.50
Not Needed
Total:
$733.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
