Crown 5-1/2" - 1

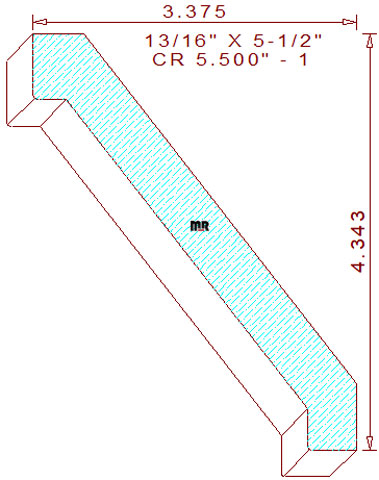

This beveled 5-1/2” - 1 crown mould measures 5.500” wide by .813” thickness, enabling the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The angled terminating profile is composed of an 11/16” vertical line on the top left, joined to an 11/32” wide flat line that transitions into a 4-3/32” wide splay faced line in the center, attached to a 7/16” tall by 1/2” wide perpendicular lines on the bottom right side of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 4.11/32" tall with a projection of 3-3/8" wide. We offer a similar style profile with forty-five-degree back cuts for your review and consideration, crown 5.500” - 37.
