Crown 5-7/16"
Crown 5-7/16"

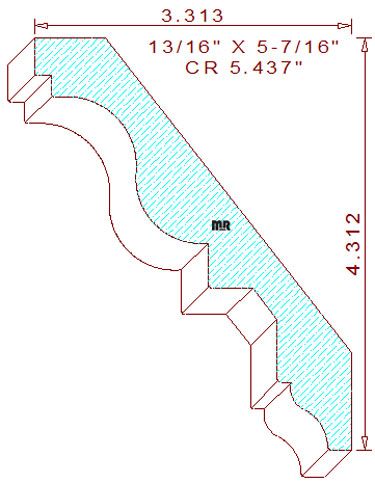

This classy crown mould 5-7/16" measures 5.437" wide by .812" thickness. The profile comprises a notched fillet attached to a cyma recta with a vertical fillet transitioning into an area for dentil moulding to be applied connected to a cyma reversa with horizontal fillets at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, which sets the installed height at 4-5/16" tall with a 3-5/16" wide projection.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.589
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.623
Top Cutter Head
Width: 5.437
Depth of Cut: 0.414
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
