Crown 5-3/8" - 5
Crown 5-3/8" - 5

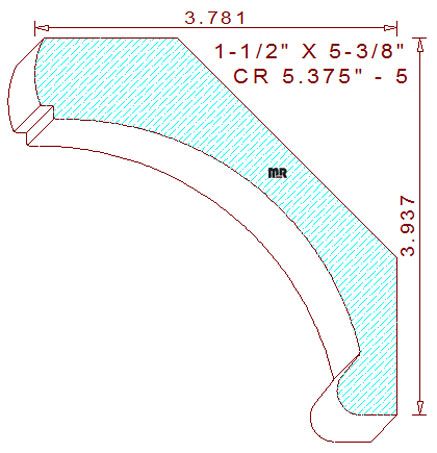

This unique 5-3/8" - 5 crown mould measures 5.375" wide by 1.500" wide. The profile consists of a notched arc on top, a cavetto consumes the middle portion, and a thumbnail-shaped half-round circle at the bottom. The installed height equals 3-15/16" tall with a projection of 3-25/32" wide, the spring angles are fixed at forty-five degree.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.162
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.986
Top Cutter Head
Width: 5.375
Depth of Cut: 1.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
