Crown 5-5/16" - 4
Crown 5-5/16" - 4

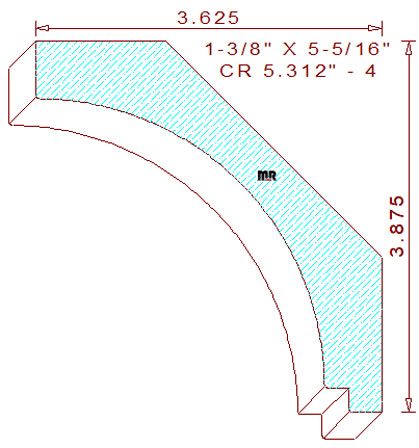

This cove style 5-5/16" - 4 crown mould measures 5.312" wide by 1.375" thickness, requiring at least six-quarter lumber to mill this detail on an industrial moulder. The concave profile is comprised of a 5/8" tall vertical line at the top, connected to a 3" radius cove in the center that joins to a 1/4" wide by a 1/4" tall notch with an 11/32" broad horizontal line at the bottom of the design. The spring angles are fixed at
forty-five degrees, these specific back bevels set the installed height at 3-7/8" tall with a projection of 3-5/8" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.967
Left Cutter Head
Thickness: 1.625
Depth of Cut: 1.144
Top Cutter Head
Width: 5.312
Depth of Cut: 0.875
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$156.75
(Template not needed)
