Crown 5-1/4" - 24
Crown 5-1/4" - 24

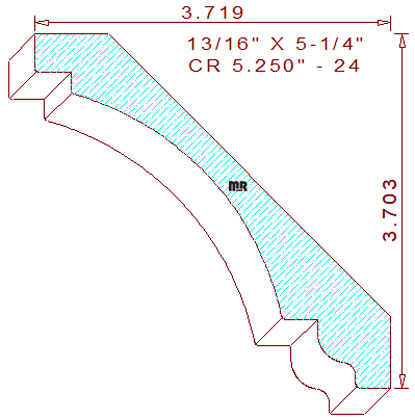

This attractive 5-1/4" - 24 crown mould measures 5.250" width by .812" thickness. The attractive profile contains a 3-5/64" radius cove in the center, attached to a 3/8" wide by 9/32" tall, notched fillet with a 13/32" vertical line on top. The lower portion consists of a 3/8" wide horizontal line attached to a two-tangent radius ogee with a 3/8" wide horizontal line at the bottom. The spring angles are fixed at
forty-five degrees, these specific back bevels set the installed height at 3-45/64" tall with a projection of 3-23/32" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.547
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.530
Top Cutter Head
Width: 5.250
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
